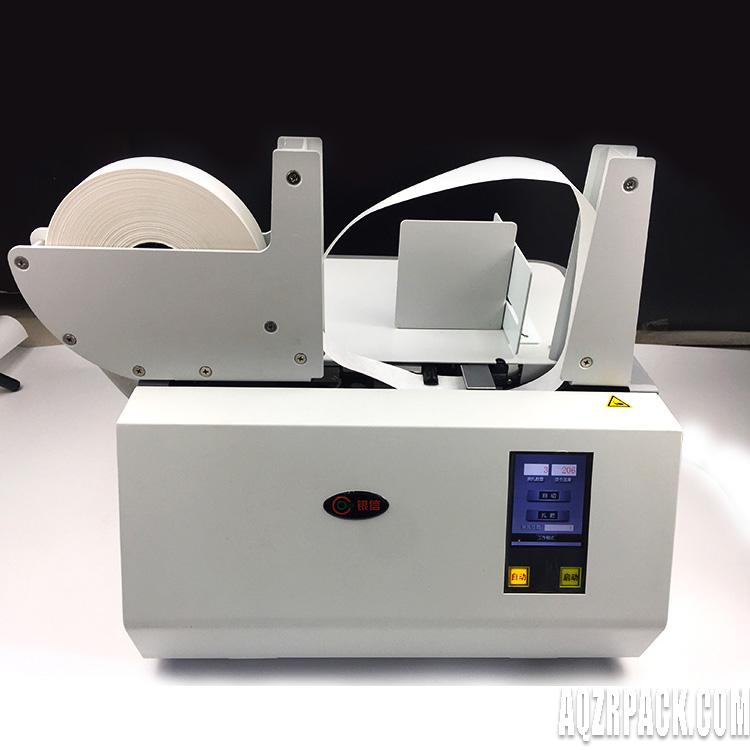

> Tabletop strapping machine

Automatic paper tape strapping machine suit 2/3/4cm wide tape

Binding speed: 24 bundles/min
Voltage: 220v
Weight : 27kg
Tape type: OPP film or paper tape
Product description: BANKNOTE BINIDNG MACHINE; PAPER STRAPPING MACHINE; wrapping tape machine used in printing/banking industrial
Inquiry

Product introduction

Machine Specs

Banding Speed	20-24 bandings/min. Depending on application and loop size.
Power Supply	AC220V??10% 50HZ
Power Consumption	?? 200 W
Preheating Time	??4min
Environmental Conditions	Temperature: 0 ?C -40 ?C; Humidity: 40%-90%; Altitude below 2000 m.
Working noise	??70dB
Dimension of banding material	40mm~200mm long, 60mm~250mm wide and the height should be within 200mm
Consumable	PE-coated paper tape, OPP film tape
Banding Tape width:	20/30/40 mm can be optional
Unit size	470mm??370mm??400mm(400mm without tape box) (L * W * H )
N.W.	27kg

Packaging & Shipping

1 SET/CARTON
Size of carton: 50cm*40cm*45cm, weight 35kgs

21 days after deposit received and packing confirmed by customer

Machine Features

1. A unique design to avoid folding the edge of banknotes while banding.

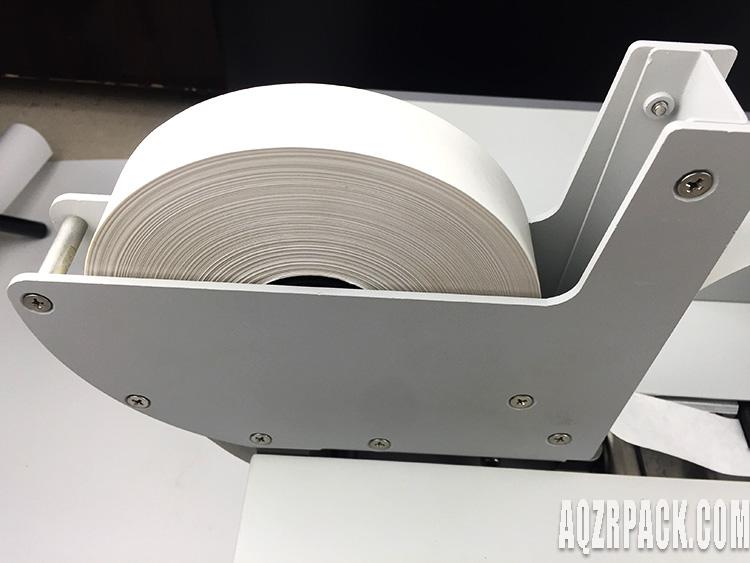

2. External tape box and automatic tape feeding designs ensure the easy tape change.

3. Optimized mechanism design allows easy access to tape feeding and trouble shooting.

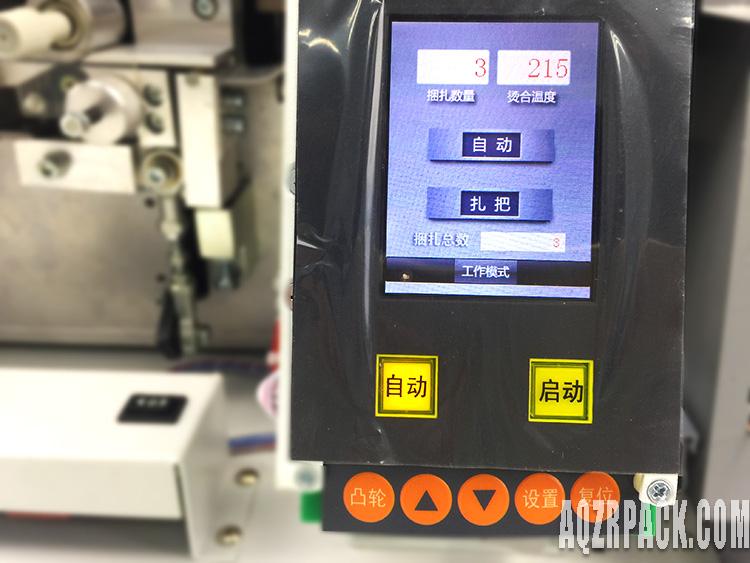

4. LCD display for user-friendly operation, directly showing the settings of loop size, banding tightness and sealing temperature.

5. Both PE coated paper tape and PP film tape are available in one unit.

6. Tapes of 20 mm /30mm /40 mm are available, printed tape on request.

7. Low noise, making operators?? work more comfortable.

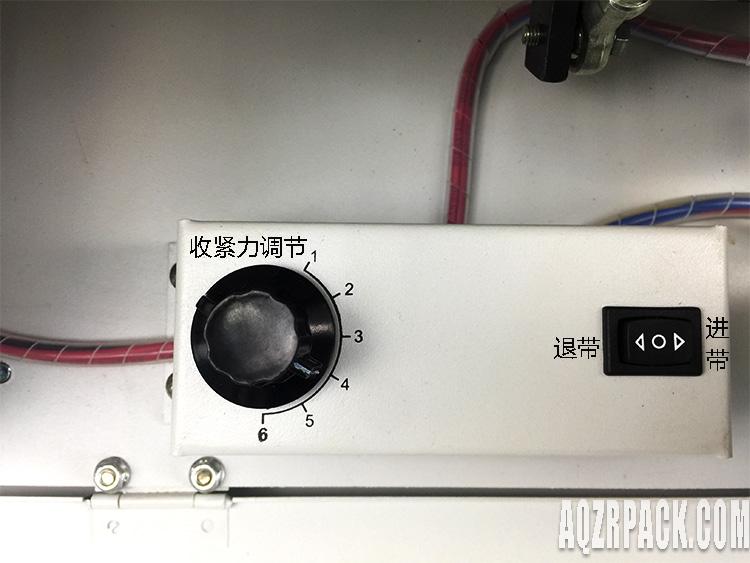

8. Adjustable binding tension with 6 level gears

9. Movable tape box and shifting board

10.Table type simple binding machine, machine parts available

Company Information

Manufacturer and trade integrated type corporation

Anqing City Yinxin Equipment Co.;Ltd Anqing Zhongrun Packaging Co.;Ltd

www.aqzrpack.com

Banding Machine	Banding Paper Roll
Strapping Machine	OPP Plastic Strap Roll
Plastic Bundling Belt	Box corner Pasting Tape
Bill counter	Currency Binder

Bundle your finished pieces such as business cards, postcards, and brochures Desktop Banding Machine. The Bander wraps a strip of craft paper around the bundle, providing you with the same security, but at a lower cost, than a box or bag.
